相比普通COB光源，陶瓷基板COB在性能和使用体验上更具优势，能够为您带来更优质的照明解决方案！
Outperforming standard COB light sources, ceramic‑substrate COBs offer enhanced performance
and better user experience to bring you premium lighting solutions.

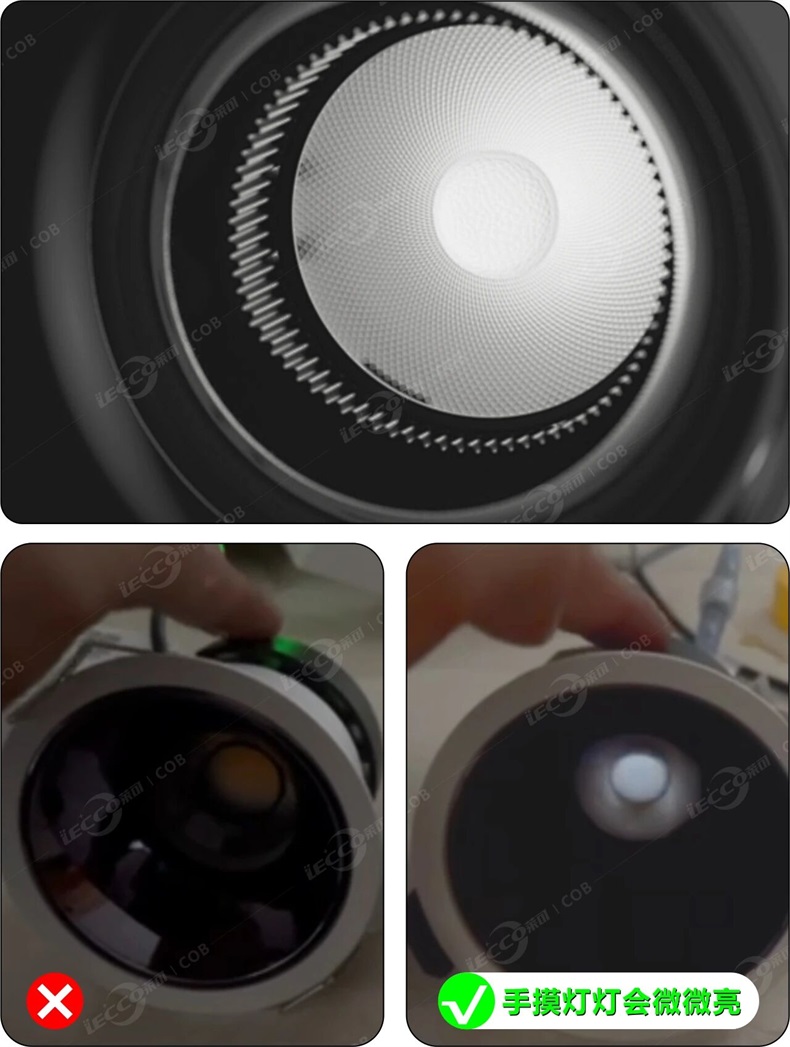

陶瓷系列COB光源，关灯微微亮手摸不开灯微微亮，解决感应电微光问题。
Ceramic‑Series COB light source solves the induced‑electricity faint‑glow issue, eliminating the slight
residual glow when the light is switched off or when touched with power‑off.

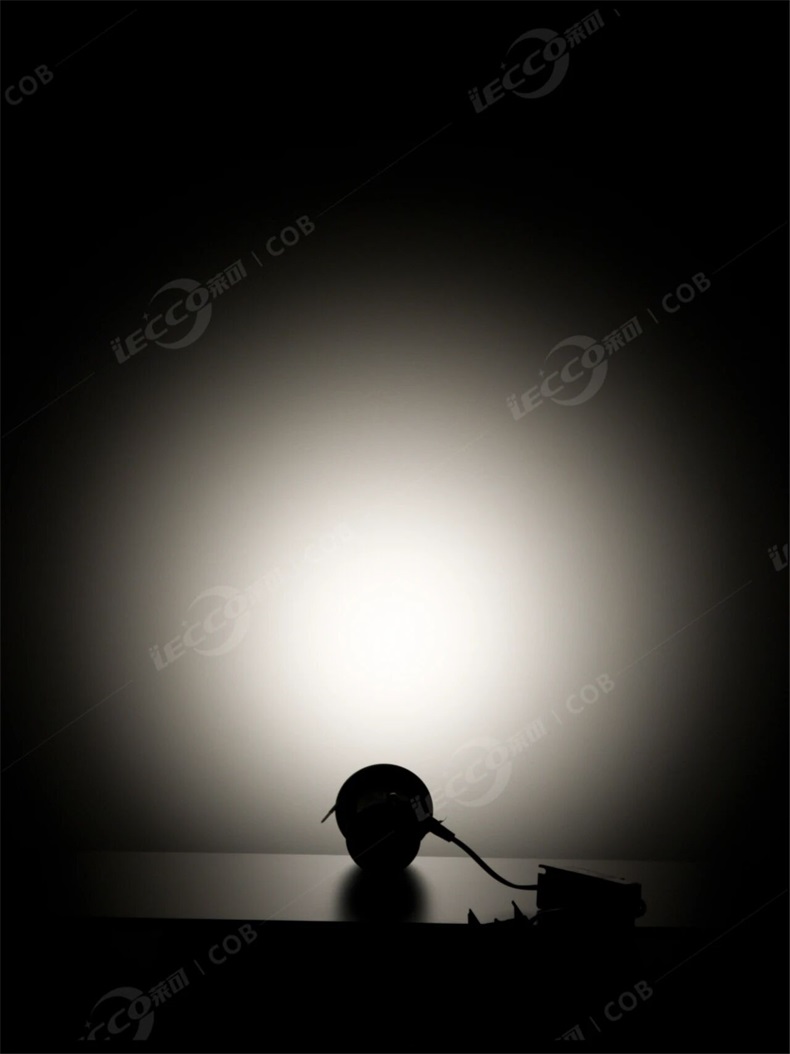

陶瓷系列COB光源，光斑均匀，光色纯净，适用于各类应用场景。
Ceramic‑Series COB light source features a uniform beam spot and pure chromaticity,
suitable for a wide range of application scenarios.

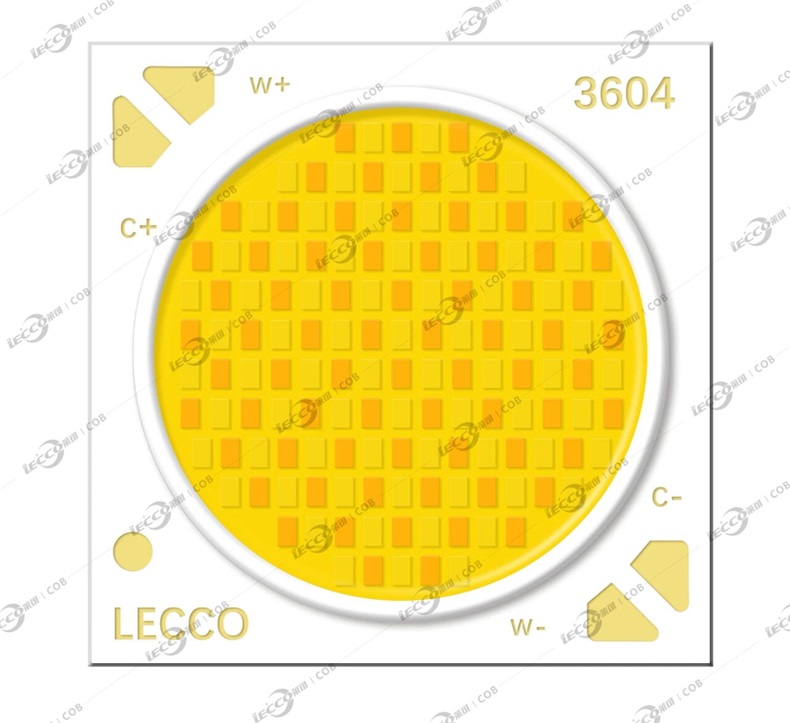

ABAB矩阵式排布，科学光学匹配排布。
It adopts an ABAB‑patterned matrix arrangement for scientifically matched optical distribution.

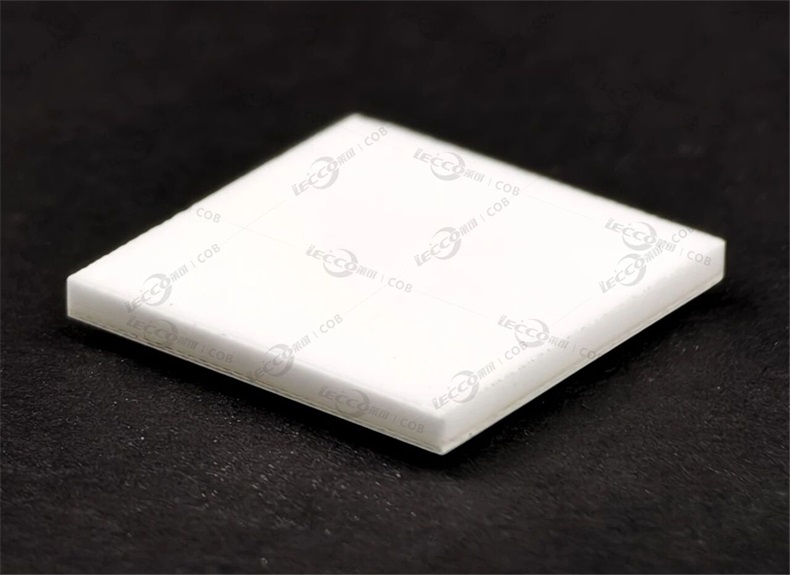

水切工艺，陶瓷基板。改善生产制程应力裂片、碎板隐患。
Water‑jet cutting process with ceramic substrate, which reduces the risk of substrate cracking
and chipping caused by process‑induced stress during production.
陶瓷系列COB光源，耐压高 1500V，98显指，高光效 100-130LM/W。
Ceramic‑Series COB Light Source: High voltage resistance up to 1500V, CRI Ra＞98, High luminous efficacy: 100‑130 lm/W

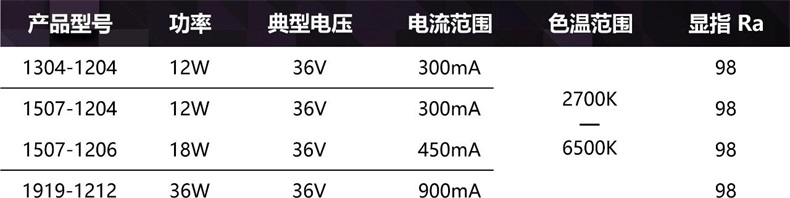

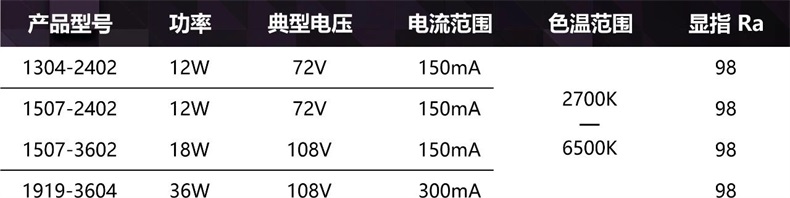

规格参数 / Technical Specifications

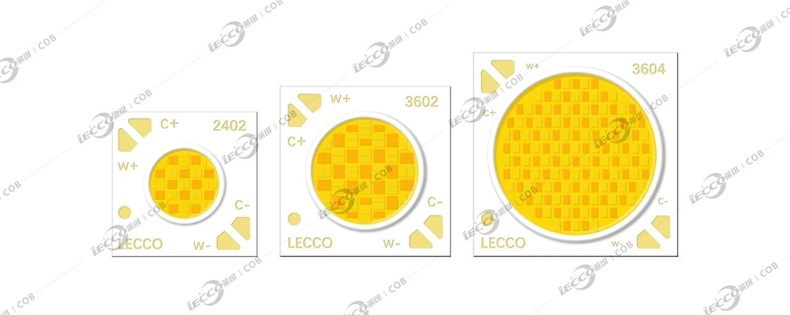

非隔离版本为 / Non‑isolated versions: 2402 3602 3604
隔离版本为 / Isolated versions：1204 1206 1212

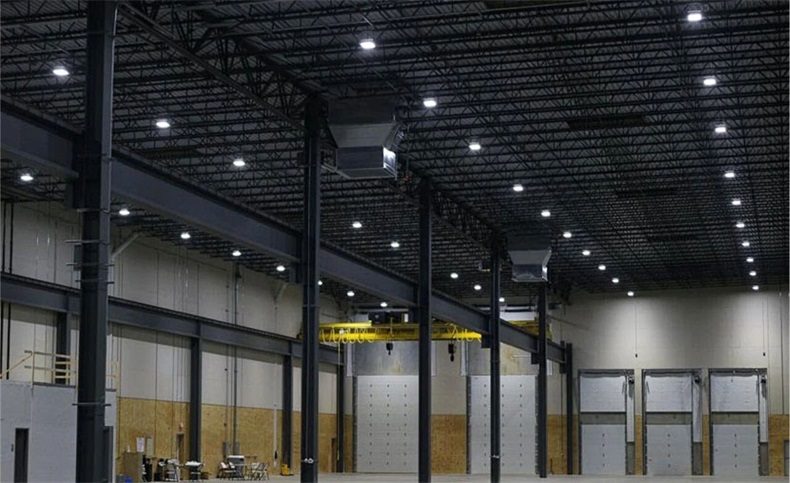

高功率照明（如工厂用灯、投光灯）陶瓷系列光源是COB集成封装，多芯片直接集成在陶瓷基板上，单位面积光通量高，可实现高亮度均匀照明，满足工厂大范围、高照度需求。
Ideal for high‑power lighting including factory lights and floodlights, Ceramic‑Series COB features chip‑on‑board integrated packaging with multiple chips directly assembled on a ceramic substrate. High luminous‑flux density provides uniform high‑brightness lighting, satisfying large‑scale, high‑illuminance demands for industrial premises.

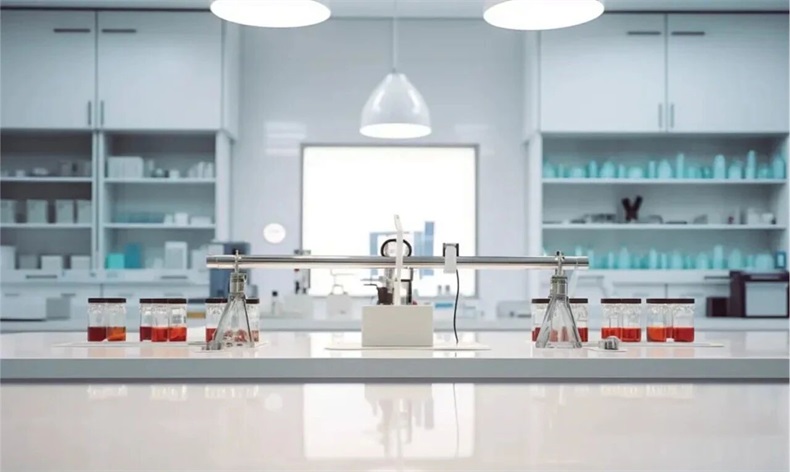

精密仪器照明（医疗、检测设备）陶瓷基板的导热系数较高，能确保芯片在高温下工作，避免热辐射影响精密仪器（如光学传感器）的准确性。陶瓷基板的绝缘特性能减少电路干扰，适合对电磁敏感的设备（如MRI室周边照明或电子显微镜）。
When applied to precision‑instrument lighting for medical and inspection devices, ceramic‑substrate COB offers high thermal conductivity. It keeps LED chips running reliably at elevated temperatures and avoids accuracy degradation of precision instruments like optical sensors caused by thermal radiation. Its excellent insulation suppresses circuit noise, ideal for lighting near electromagnetic‑sensitive equipment such as MRI rooms and electron microscopes.

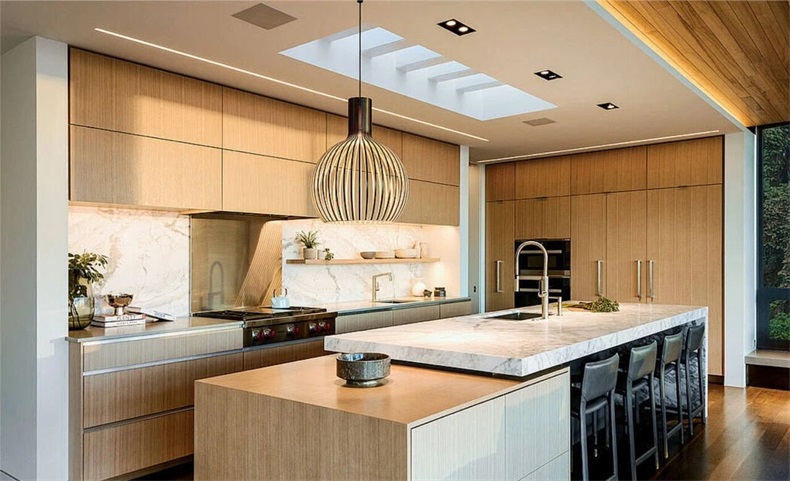

家居环境照明（客厅/ 卧室/ 厨房）家居照明新体验，适合追求健康生活、智能体验和品质细节的现代家庭。陶瓷光源的技术优势正在从高端住宅向大众市场快速普及，未来有望成为家居照明的新基准。
Home Environment Lighting (Living Room, Bedroom, Kitchen) Delivering a refreshed home‑lighting experience, perfectly suited for modern families prioritizing wellness‑oriented living, smart‑lighting features and premium finishing details. Benefits of ceramic COB technology are quickly expanding beyond high‑end residential projects into mainstream markets, poised to set a new benchmark for domestic lighting.

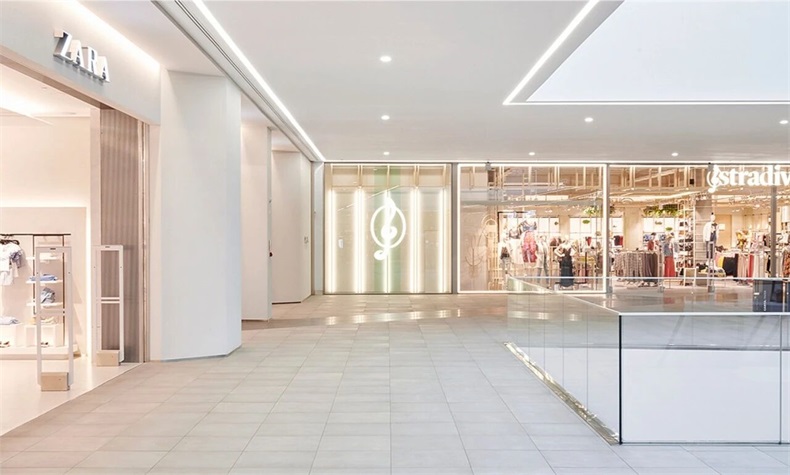

长期连续使用场景（商场、展厅）陶瓷系列COB光源 光斑均匀，光色纯净，98显指，色彩真实还原，适用于展示高端时尚服饰，通过聚焦的光线强调服装的款式、面料和色彩，使顾客更容易被吸引。
For long‑term continuous‑operation applications (shopping malls, exhibition halls), the Ceramic‑Series COB light source delivers a uniform beam spot, pure light color and CRI Ra＞98, achieving faithful color reproduction. It is suitable for displaying high‑end fashion apparel. The focused light highlights the style, fabric and color of garments, helping to attract customers effectively.

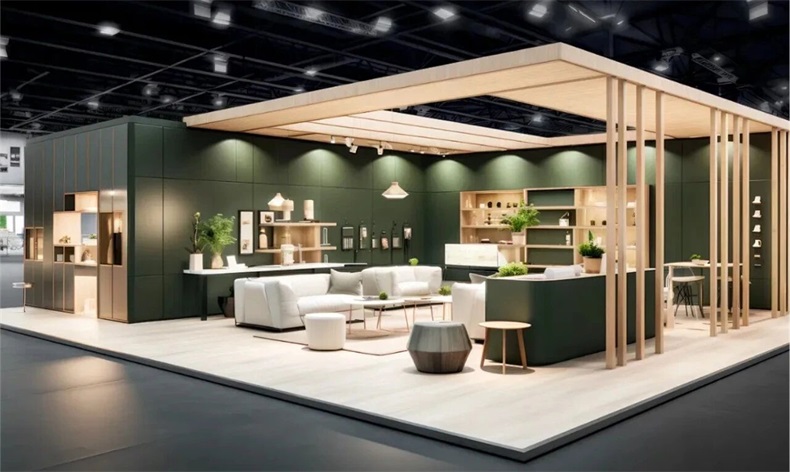

陶瓷系列COB光源 为展厅营造出一个明亮、舒适、具有吸引力的照明环境，营造独特的视觉效果，吸引过往行人的注意。彰显品牌的文化特色。
Ceramic‑Series COB light sources create a bright, comfortable and appealing lighting environment for exhibition halls, produce distinctive visual effects to capture the attention of passers‑by and highlight the brand’s cultural features.
江门市莱可半导体科技有限公司
所有产品取得相关国内国际认证，远销海内外。
Jiangmen Laike Semiconductor Technology Co., Ltd.
The company is located in the national high-tech zone of Jiangmen City. It is a high-tech enterprise focusing on COB-LED device packaging.
The company is committed to building a professional elite team and possesses world-advanced production equipment.
From research and design, production, to sales, all products strictly implement the ISO9001 quality management system.
All products have obtained relevant domestic and international certifications and are sold to markets at home and abroad.
